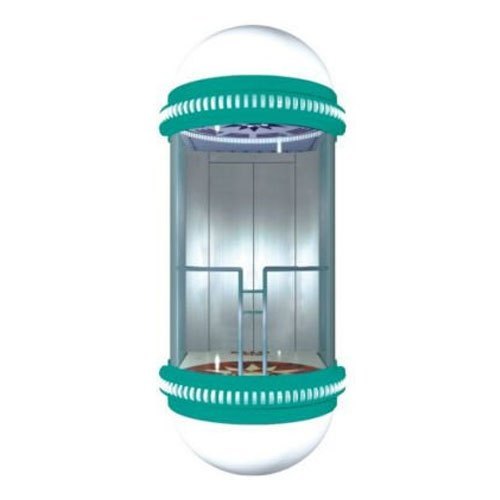

SS Capsule Elevator

Next > >

SS Capsule Elevator

Send Inquiry

Product Code : 02

Product Description

Made from the best quality stainless steels and other materials, this SS Capsule Elevator has high significance. This is why we are involved in the process of manufacturing this item with the help of our highly skilled professionals. It is designed in such a way that it can be fitted with any kind of constructions. This is a form of vertical transport used primarily to mover between multiple floors found in high-rises. We supply this SS Capsule Elevator at convenient price.

Specification :

Load		Car Size			Shaft Size				Entrance	Machine Room
Capacity (Persons)	Weight (Kg's)	Width (A)	Width (A-1)	Depth (B)	Width (C)	Width (C-1)	Depth (D)	Depth (D-1)	Width (E)	Width (H)	Depth (G)	Height (H)
8	544	900	1200	1450	2500	1400	1250	1850	800	4000	4100	2750
10	680	900	1200	1750	2500	1400	1250	2150	800	4000	4100	2750
13	884	1100	1400	2000	2600	1500	1350	2400	900	4400	4200	2750
16	1080	1100	1400	2200	2800	1600	1350	2600	1000	4400	4200	2750
20	1360	1100	1600	2600	2800	1800	1400	3000	1000	4600	4900	2750
