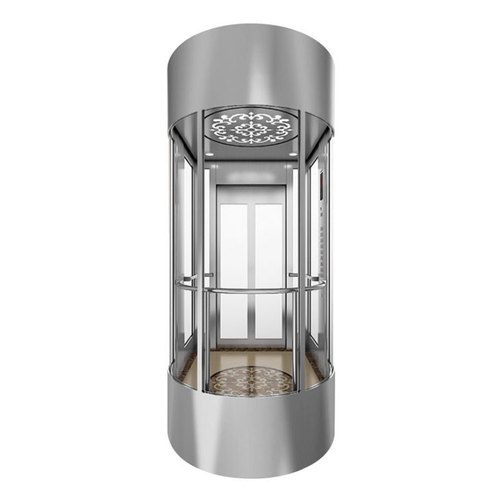

Capsule/Observation elevator, is named due to the high visibility it offers to the passengers, is a beauty in vertical motion. AIRCON has employed great artistry to combine aesthetics with functionality. Widely used in malls commercial complexes and hospitality industry, this elevator with its plush interior, soft and silent vertical motion and the bird's eye of the outer world offer to passengers is synonymous with luxury in vertical transporation.
Specification :
Load | Car Size | Shaft Size | Entrance | Machine Room | ||||||||
Capacity (Persons) | Weight (Kg's) | Width (A) | Width (A-1) | Depth (B) | Width (C) | Width (C-1) | Depth (D) | Depth (D-1) | Width (E) | Width (H) | Depth (G) | Height (H) |
8 | 544 | 900 | 1200 | 1450 | 2500 | 1400 | 1250 | 1850 | 800 | 4000 | 4100 | 2750 |
10 | 680 | 900 | 1200 | 1750 | 2500 | 1400 | 1250 | 2150 | 800 | 4000 | 4100 | 2750 |
13 | 884 | 1100 | 1400 | 2000 | 2600 | 1500 | 1350 | 2400 | 900 | 4400 | 4200 | 2750 |
16 | 1080 | 1100 | 1400 | 2200 | 2800 | 1600 | 1350 | 2600 | 1000 | 4400 | 4200 | 2750 |
20 | 1360 | 1100 | 1600 | 2600 | 2800 | 1800 | 1400 | 3000 | 1000 | 4600 | 4900 | 2750 |
